Description External Clamp Portable Handheld Ultrasonic Flowmeter Sewage Flowmeter
This flowmeter can be virtually applied to a wide range of measurement. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent. etc
Detail Images External Clamp Portable Handheld Ultrasonic Flowmeter Sewage Flowmeter
Features External Clamp Portable Handheld Ultrasonic Flowmeter Sewage Flowmeter
1, High Accuracy measurinng
2, Widemeasuring Range
3, Large capacitybattery
4, No-intrusivemeasuring
5, Support Multiple Language Meau
6, Large LCD display
7, Build-indataloger
Specification External Clamp Portable Handheld Ultrasonic Flowmeter Sewage Flowmeter
| Items Performance & Parameter |
| Convertor | Principle | Transit- time ultrasonic flowmeter |
| Accuracy | ±1% |
| Display | 4×16 character LCD with backlight, support the language of Chinese, English and Italy |
| Data Interface | Insulate Rs232 serial interface, upgrade the flowmeter software by computer |
| Pipe Installation Condition | Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed |
| Pipe Diameter | 25~6000mm |
| Straight Pipe | Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump |
| Measuring Medium | Type of Liquid | Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil ( crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals ( alcohol, etc.); Plant effluent; Beverage; Ultra- pure liquids, etc. |
| Temperature | - 30~160℃ |
| Turbidity | No more than 10000ppm and less bubble |
| Flowrate | 0~±10m/ s |
| Working Environment | Temperature | Convertor:- 20~60℃;Flow Transducer:- 30~160℃ |
| Humidity | Convertor: 85% RH;Flow Transducer: Ip67 |
| Power Supply | 3 AAA built-in Ni-MH batteries 1.2V(for over 12 hours of operation). 90V-260V AC adapter |
| Power Consumption | 1. 5W |
| Case Material | ABS |
| Dimension | 200*93*32MM(Convertor) |

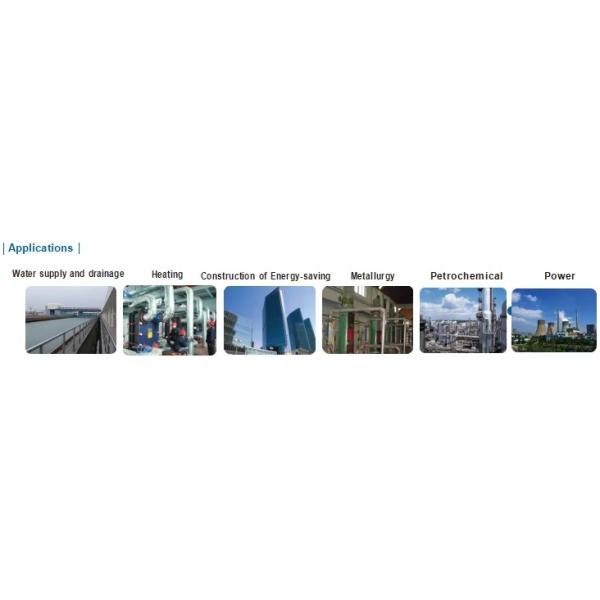

Application External Clamp Portable Handheld Ultrasonic Flowmeter Sewage Flowmeter
Selection Guide External Clamp Portable Handheld Ultrasonic Flowmeter Sewage Flowmeter
